Image of an angled view of a red Chrystler wheelchair van with manual ramp

Vantage Mobility Chrysler Pacifica Northstar® with Access360® Power In-Floor

The Vantage Mobility Chrysler Pacifica wheelchair van has superior interior space, 360˚ maneuverability, interchangeable seating, and in-floor ramp with one of the automotive industry’s most stylish and technologically equipped van.

Vantage Mobility Northstar® Power InFloor
Chrysler Pacifica Wheelchair Vans For Sale

High Capacity Ramp

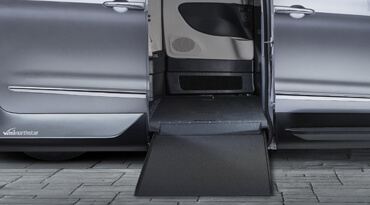

Side entry manual ramp on a shining blue wheelchair van
The in-floor ramp is 30" wide with 1000 lb weight capacity to accommodate large power wheelchairs.

More Space to Maneuver

Obstacle free interior of a wheelchair van with yellow cycle symbol on the floor
Access360 provides more space to enter the vehicle and maneuver inside and has removable front seats.

Obstruction-Free Doorway

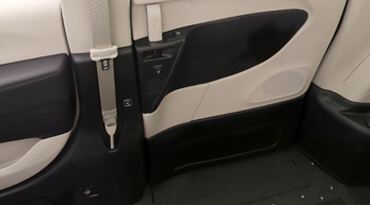

Seats and seatbelts in a wheelchair van
The in-floor ramp provides safe entry and exit without deploying the ramp for able-bodied passengers.

Vantage Mobility Northstar® Power In-Floor Dimensions

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
Vantage Mobility Northstar® Power Infloor
Make and Model
Chrysler Pacifica
Door Opening
AUsable Height:
56"
BUsable Width
29.3"
Ramp Information
Fold-Out / In-Floor
In-Floor
Power / Manual
Power
Weight Capacity
1000
Full / Partial Cut
Full Cut
CLength
59"
DWidth
30"
EAngle
9°
Kneeling System
Yes
Interior Information
FHeight at Center of Van
59"
GHeight at Front Row Position
60"
HFloor Length (Behind Seats)
65.8"
IOverall Floor Length (Flat Area)
91.5"
JLowered Floor Width
60.2"
Removable Front Row Seats
Both
