Side entry gray Dodge caravan with Braunability logo on the passenger side door

BraunAbility ®Dodge CompanionVan®Plus XT

The BraunAbility Plus XT offers greater visibility and more head clearance (56-1/2″ through the sliding door). An improved kneeling system lowers the rear suspension, resulting in a lower, more wheelchair-friendly ramp slope. The open floor plan and removable front seats offers seating flexibility.

CompanionVan Plus XT Dodge Wheelchair Vans for Sale



Extra Headroom

The empty interior of a gray wheelchair van from the side view
The BraunAbility Plus XT has a full 56 ½” clearance through the doorway and up to 61″ inside the van.

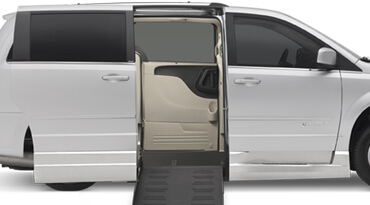

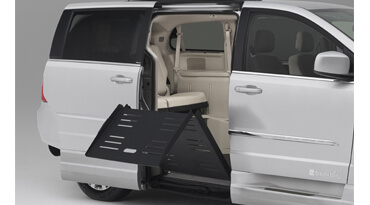

Power Fold-Out Ramp

Manual ramp folding back into a white wheelchair van
The lightweight aluminum ramp extends to allow easy access to the interior for wheelchairs and scooters.

Fold-Down Footrest

Woman wearing a seatbelt and placing her feet on the footrest in a wheelchair van
The fold-down footrest provides 3rd row passenger comfort.

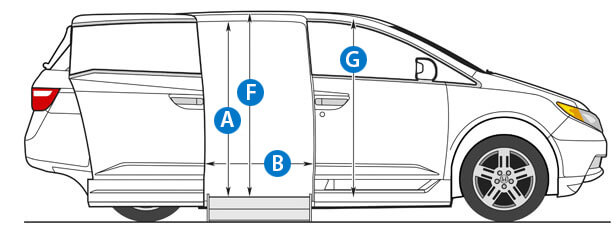

BraunAbility® CompanionVan® Plus XT Dimensions

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
BraunAbility CompanionVan Plus XT
Make and Model
Dodge Grand Caravan
Door Opening
AUsable Height:
56.5"
BUsable Width
31.5"
Ramp Information
Fold-Out / In-Floor
Fold-Out
Power / Manual
Power
Weight Capacity
800
Full / Partial Cut
Full Cut
CLength
52"
DWidth
29.25"
EAngle
11°
Kneeling System
No
Interior Information
FHeight at Center of Van
61"
GHeight at Front Row Position
60"
HFloor Length (Behind Seats)
57"
IOverall Floor Length (Flat Area)
87.5"
JLowered Floor Width
62"
Removable Front Row Seats
Both
