BraunAbility® Dodge Power Fold-Out Side-Entry

The  BraunAbility Dodge Power side-entry has a fold-out ramp and extra interior space. Functions are controlled by remote and several interior switches. A rear fold-down footrest adds more comfort for passengers .

BraunAbility® Power Fold-Out Dodge Wheelchair Vans for Sale



Power Fold-Out Ramp

Manual ramp on a wheelchair van folding upward
This lightweight power fold-out ramp allows easy access to the van interior.

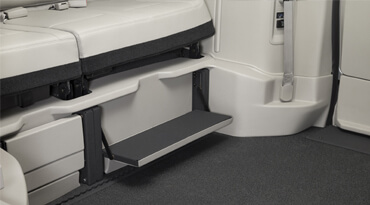

Fold-Down Footrest

Foot rest in a wheelchair van
The fold-down footrest provides 3rd row passenger comfort.

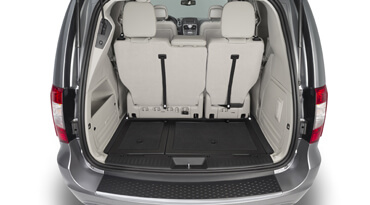

Rear Cargo Area

Rear cargo space in a wheelchair van
The Dodge Power side-entry has generous rear cargo space behind the rear seat.

BraunAbility® Power Fold-Out Dimensions

Sideview wheelchair van schematic

Aerial view wheelchair van schematic



Vehicle Information
Name of Conversion
BraunAbility Power Fold-Out
Make and Model
Dodge Grand Caravan
Door Opening
AUsable Height:
52.5"
BUsable Width
31.5"
Ramp Information
Fold-Out / In-Floor
Fold-Out
Power / Manual
Power
Weight Capacity
800
Full / Partial Cut
Full Cut
CLength
52"
DWidth
29.25"
EAngle
10.6°
Kneeling System
Yes
Interior Information
FHeight at Center of Van
57.25"
GHeight at Front Row Position
56.25"
HFloor Length (Behind Seats)
57"
IOverall Floor Length (Flat Area)
87.5"
JLowered Floor Width
62"
Removable Front Row Seats
Both
